OZOT Energy Lithium batteries

Characteristic
Dimensions-mm
Item Specification

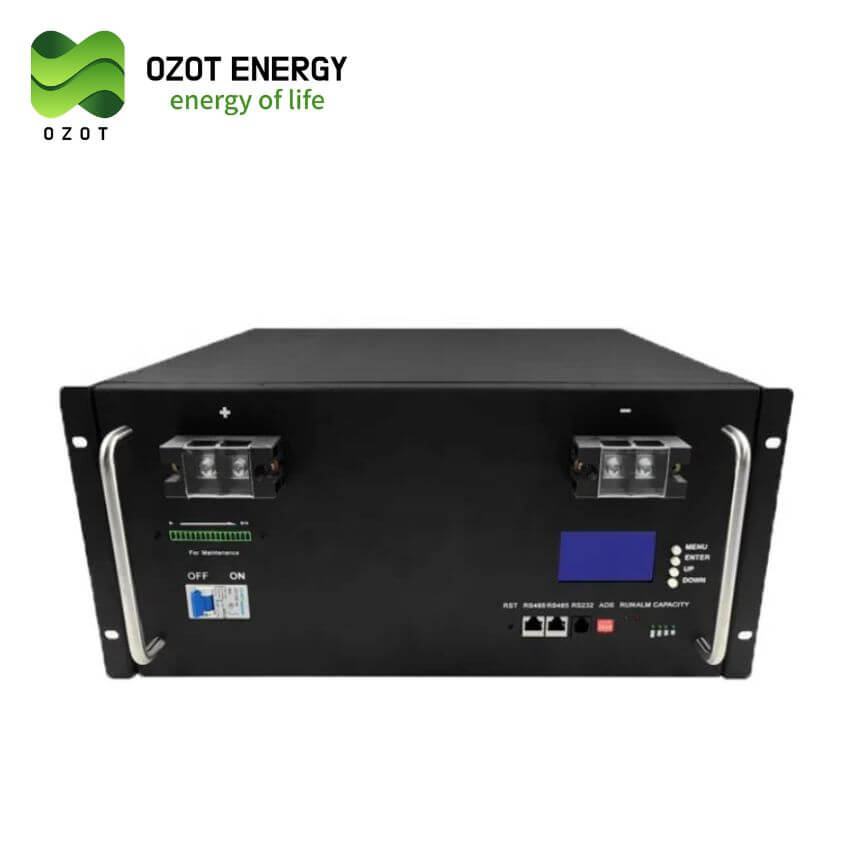

Model OZ-48100-S
Rated Capacity (5HR) 100 Ah
Nominal Voltage 48.0 V
Discharge Ending Voltage 42.0 V
Equalized Charging Voltage 54.0 V-56.0V
Floating Charging Voltage 54.0V
Max. Charging Current 100 A
Max. Continue Discharging Current 100 A
Weight Approx. 46 Kg
Display With a display screen
Parallel Connection Parallel connection is optional (up to 15P).
Dimensions (W*D*H) mm (inches) 442 (17.40") * 431 (16.97") * 177.5 (6.99")
Altitude Less than 4000m
Design life More than 15 years
Cycle Life More than 3500 cycles at 100% DOD.
IP Class IP31
Outer Package Material Black bake lacquer steel case (battery rack or cabinet is optional)
Operating Temperature and humidity Charging: 0 to +55℃ Discharging: -20 to +60℃ Humidity: 5% to 95%
Table & Curve
Constant Current Discharge Table (Amperes) at 25℃
Model Voltage Time 1 h 2 h 3 h 5 h 10 h
JL-48100-S End of discharge voltage 42 V 100A 50 A 33 A 20 A 10 A
Constant Power Discharge Table (Watts) at 25℃
Model Voltage Time 1 h 2 h 3 h 5 h 10 h
JL-48100-S End of discharge voltage 42 V 4800W 2400 W 1600 W 960 W 480W
